Our motor family allows top design flexibility – whether you are looking for high sophistication or simplicity itself.

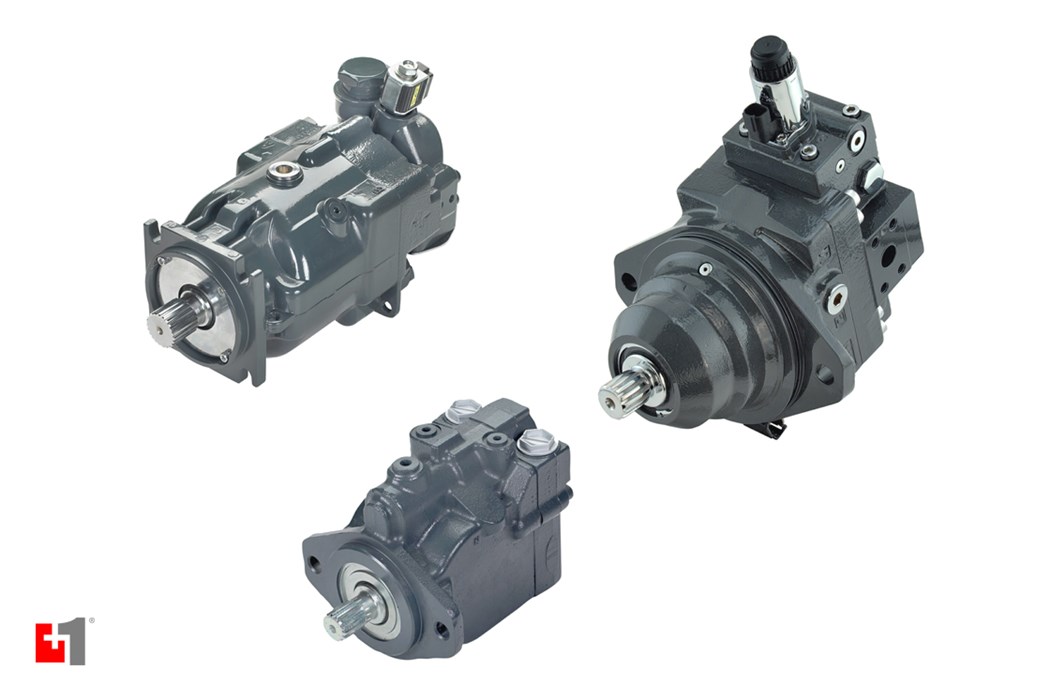

Our H1 bent axis motors are designed to complement the growing family of H1 axial piston pumps. Featuring proven 32 degree bent axis technology, zero degree capability and higher overall efficiency, they offer a number of significant advantages

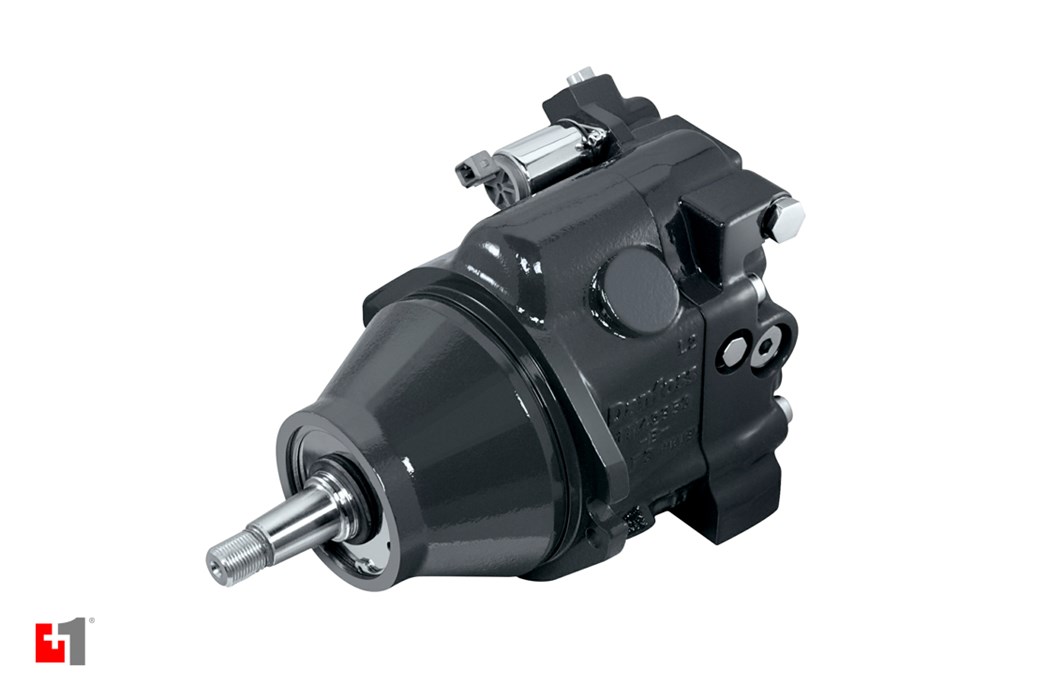

The Danfoss Reverse Displacement Motor (RDM) is a breakthrough in technological innovation and engineering.

The heart of the new technology is an integrated shift valve. When used in a fan drive application, triggers a series of cost-saving and efficiency-boosting advances.

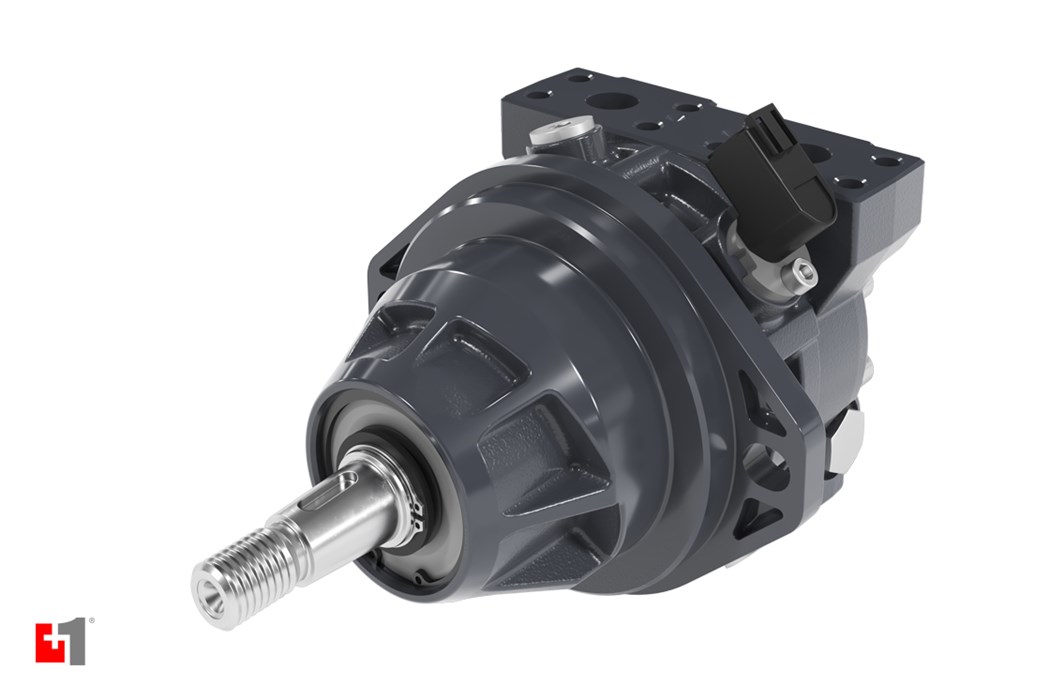

MP1 motor is our next generation of fixed displacement axial piston motors. The MP1 motor is designed for use in mobile equipment using existing and proven technology.

These motors have been optimized around product life, package size, option variety, and low installation cost.

We offer rapid prototype delivery which will allow your application to get faster into the market.

MP1 motors are offered in four displacements in two package sizes, 20/24 and 28/32cc/rev, and are capable of operating in closed-loop and open-loop systems. Different mounting configurations are available: SAE A, B, and cartridge style two-bolt flange.

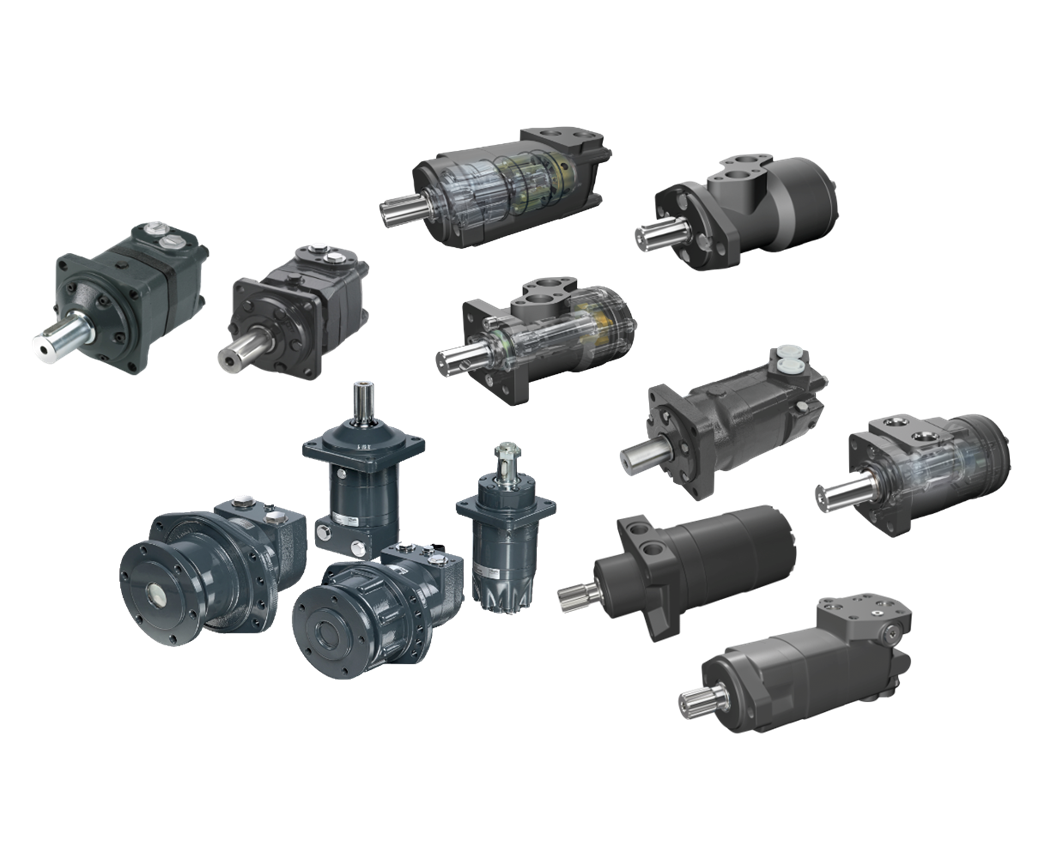

Offering you the widest orbital motor portfolio in the market, based on more than 70 years of experience in the field of hydraulics. Danfoss orbital motors have a very high efficiency over the entire lifetime of the product, meaning that you save energy and money.

Our global reach means we can provide customer service and technical support almost anywhere.

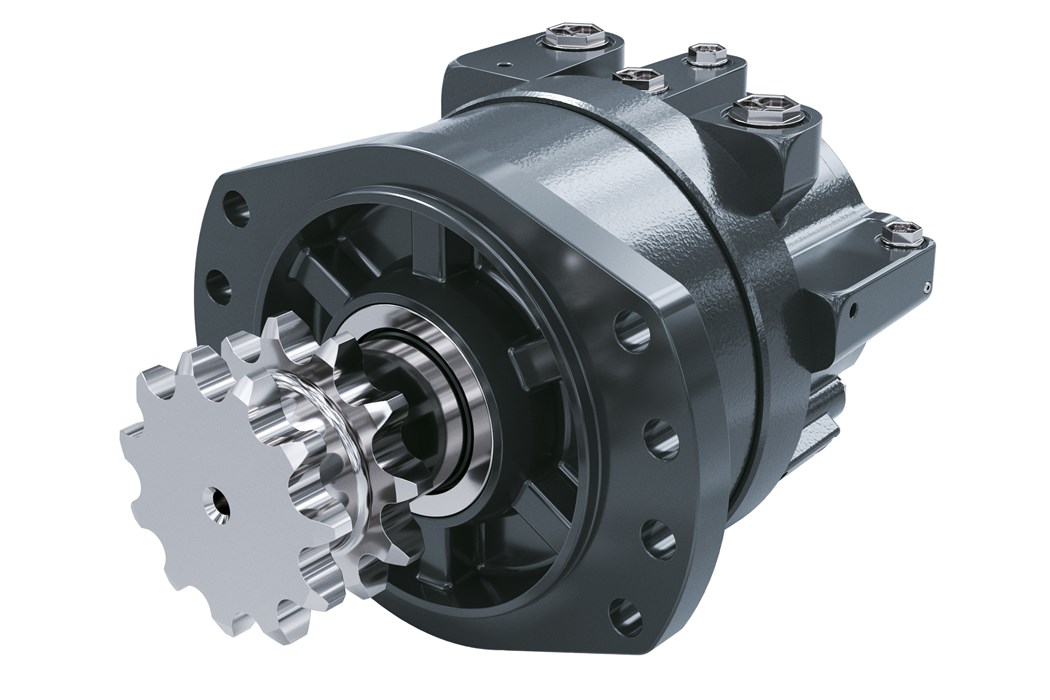

The all-new THORX product line delivers improved performance and higher efficiency to match the evolving customer demands in mobile transmissions.

THORX motors have been developed in close collaboration with our customers and are based on a well-proven radial piston motor design. Also known as a cam lobe motor, which is commonly used in closed-circuit medium power propel applications.

We offer rapid prototype delivery which will allow your application to get to market faster.

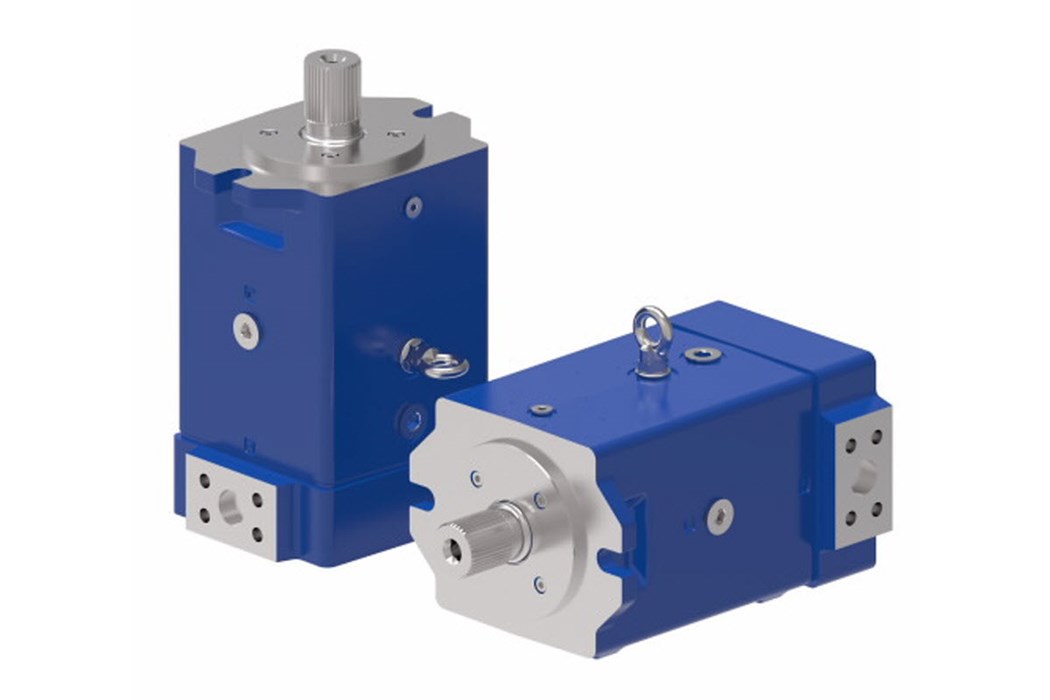

Danfoss Hydrokraft axial piston motors are engineered with the largest shaft bearings available, for full through-drive capability and long life in harsh operating conditions. Hydrokraft products offer total application flexibility, with a wide range of control options.

• Technology – Axial piston
• Displacement – 66-750 cc (4.0 to 45.8 cu in)
• Continuous pressure rating – 350 bar (5,000 psi)

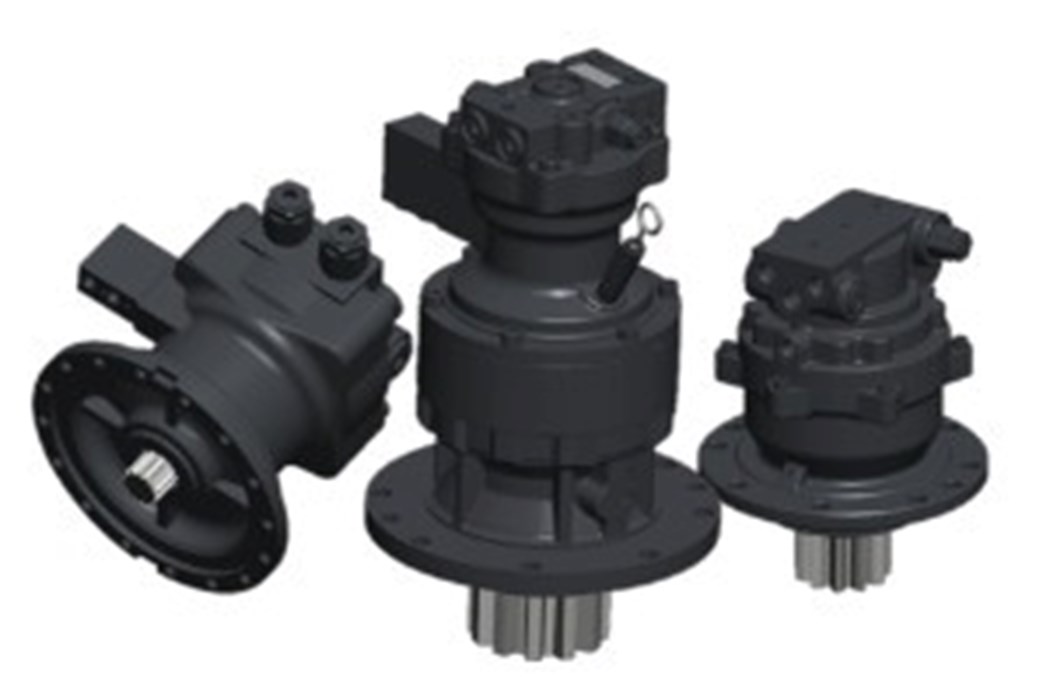

Danfoss D-Swing drive motors provide top-tier performance with a compact design and high power density. Mechanical and volumetric efficiencies conserve energy, and mechanical shocks ensure a smooth ride.

• Technology – Axial piston with gear reduction
• Displacement – 29-250 cc (1.8 to 15.3 cu in)
• Continuous pressure rating – 380 bar (5,500 psi)

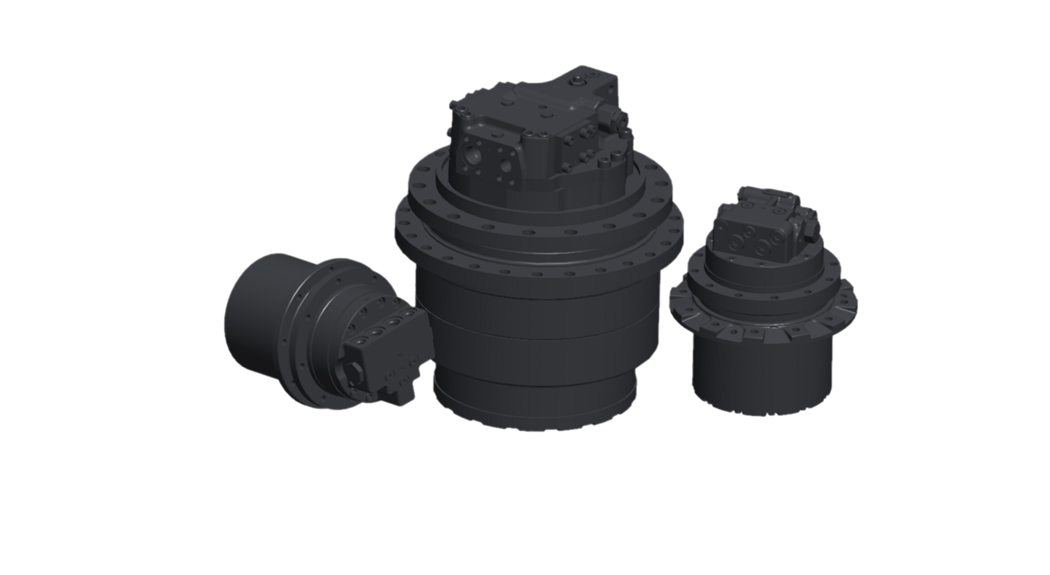

Danfoss D-Track drive motors provide lower power losses, increased mechanical and volumetric efficiency. Ideal for a wide variety of applications, these motors offer smoother acceleration and deceleration.

• Technology – Axial piston with gear reduction
• Displacement – 16-274 cc (1.0 to 16.7 cu in)
• Continuous pressure rating – 420 bar (6,100 psi)

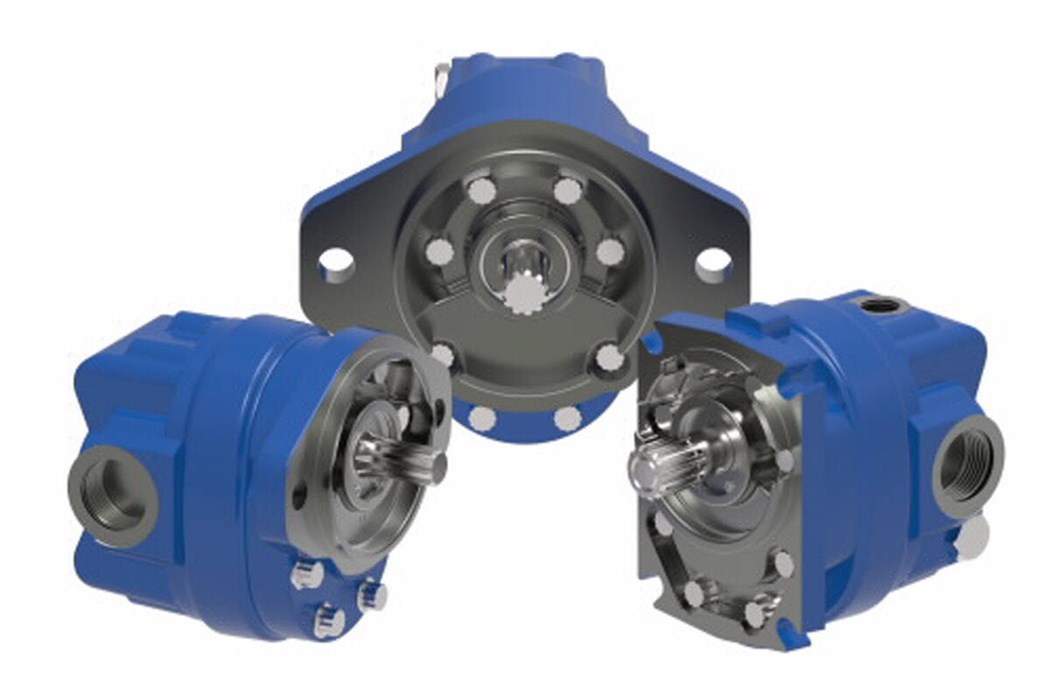

Our GearMe gear motors are the ideal choice for a wide range of applications – from small to medium and large off-highway vehicles.

Available in three different frame sizes our aluminum gear motors feature high strength extruded aluminum housings, an aluminum rear cover and a front flange for a maximum strength and a low weight.

• Available in aluminum and cast iron design
• 20% smaller than conventional gear products, high power density in a small package for easy installation in optimized machines
• Thrust plate design for high efficiency over a wide temperature range
• Teflon® coated bushings for extended life under extreme temperature and pressure conditions
• Viton® seals are standard to sustain higher temperature and fluid capabilities
• Broad range of shaft drives, integrated valves, and side or rear port options gives great flexibility in system design.
• Cast iron design for maximum efficiency, dependability, durability and reliability in performing continuous operation in heavy duty applications with severe duty cycles and temperature conditions, all within the industry leading package size and power density.
• Aluminum design is a perfect fit for agricultural and industrial applications thanks to its compactness and broad range of options available

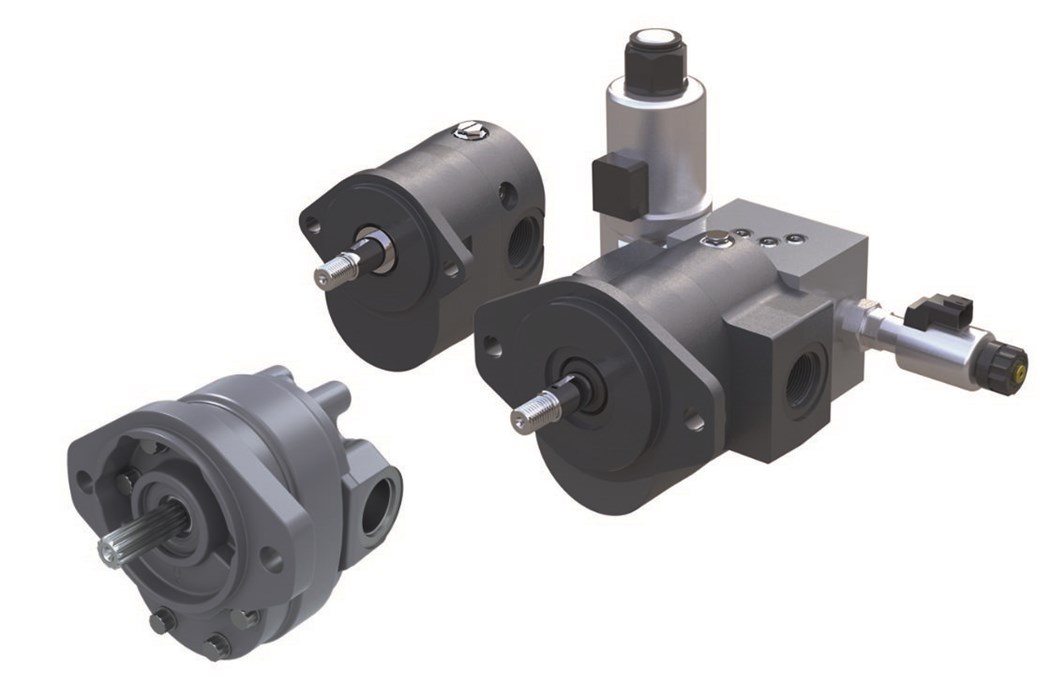

A solid product line for standard applications with unique design featuring cast iron flange and end cover for optimum reliability. Suitable for wide variety of applications that demands standard motor performance.

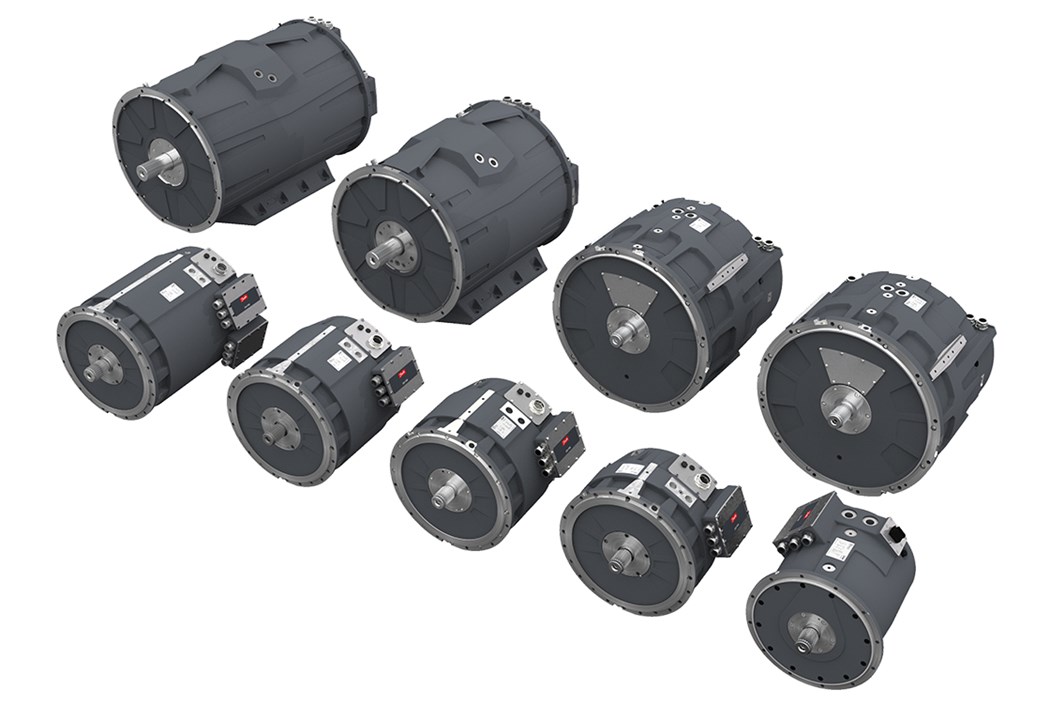

Danfoss Editron electric machines are based on synchronous reluctance assisted permanent magnet (SRPM) or permanent magnet synchronous machine (PMSM) technology. They are liquid-cooled and designed to work in harsh operating environments typical in drivetrain applications. For instance, traction motor in heavy machinery or propulsion motor in marine applications. They can work both as a generator or as a motor.

Danfoss DuraForce fixed motors are designed for long life in extreme applications. These motors deliver high efficiency, precision control and durability, with a peak pressure rating of 500 bar.

• Technology – Axial piston
• Displacement – 28-280 cc (1.1 to 11 cu in)
• Continuous pressure rating – 420 bar (6,100 psi)

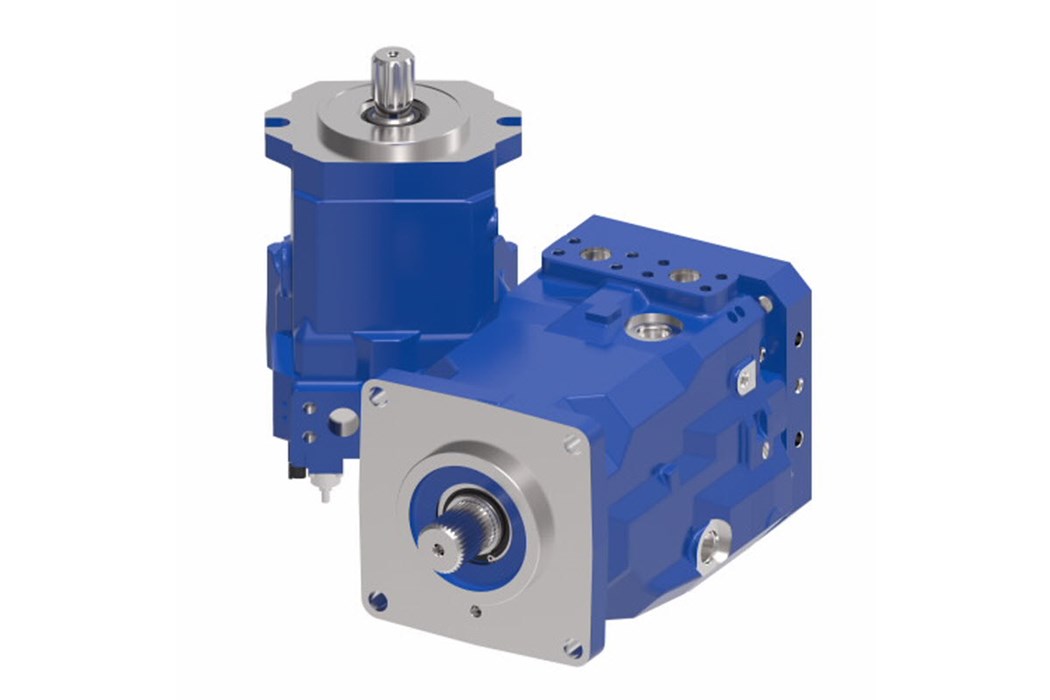

The Danfoss DuraForce family of variable motors offer smooth repeatable torque delivery, high efficiency through the operating range, and durability to handle extreme duty cycles.

• Technology – Axial piston
• Displacement – 55-280 cc (3.3 to 17.1 cu in)
• Continuous pressure rating – 420 bar (6,100 psi)

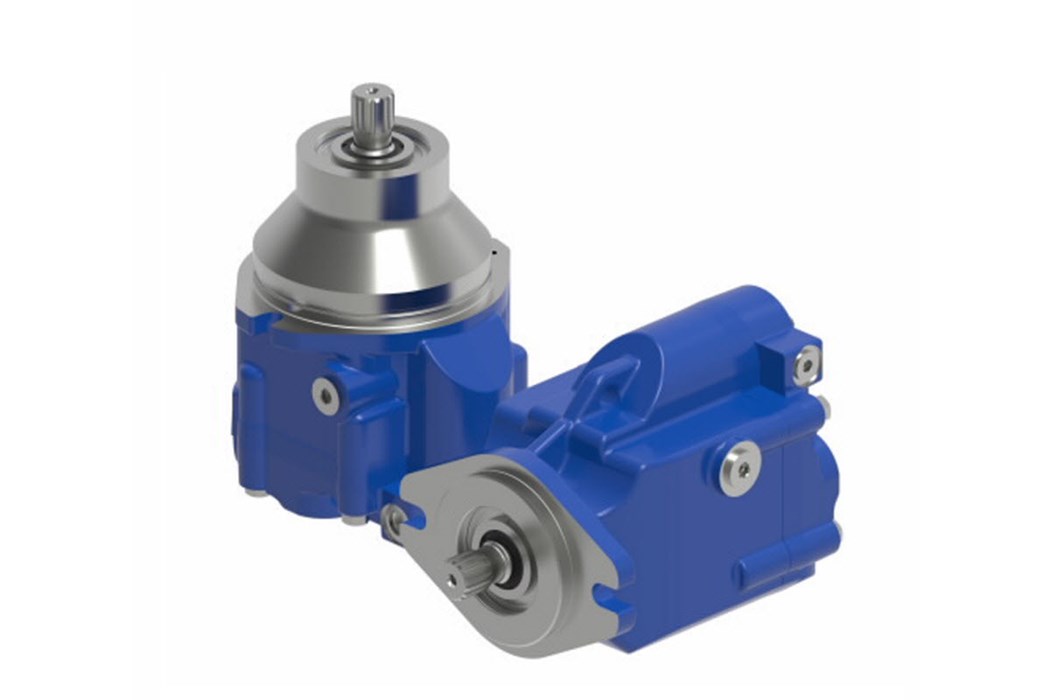

The Danfoss X3 plug-in variable piston motor is made for mobile applications where compact packaging is critical. Featuring a two-speed operating range in 41cc and 49cc displacements, the X3 motor features an array of flexible features and can adapt quickly to most machine designs within its rated operating conditions.

• Technology – Axial piston
• Displacement – 41-49 cc (2.5 to 3.0 cu in)
• Continuous pressure rating – Up to 350 bar (5,000 psi)

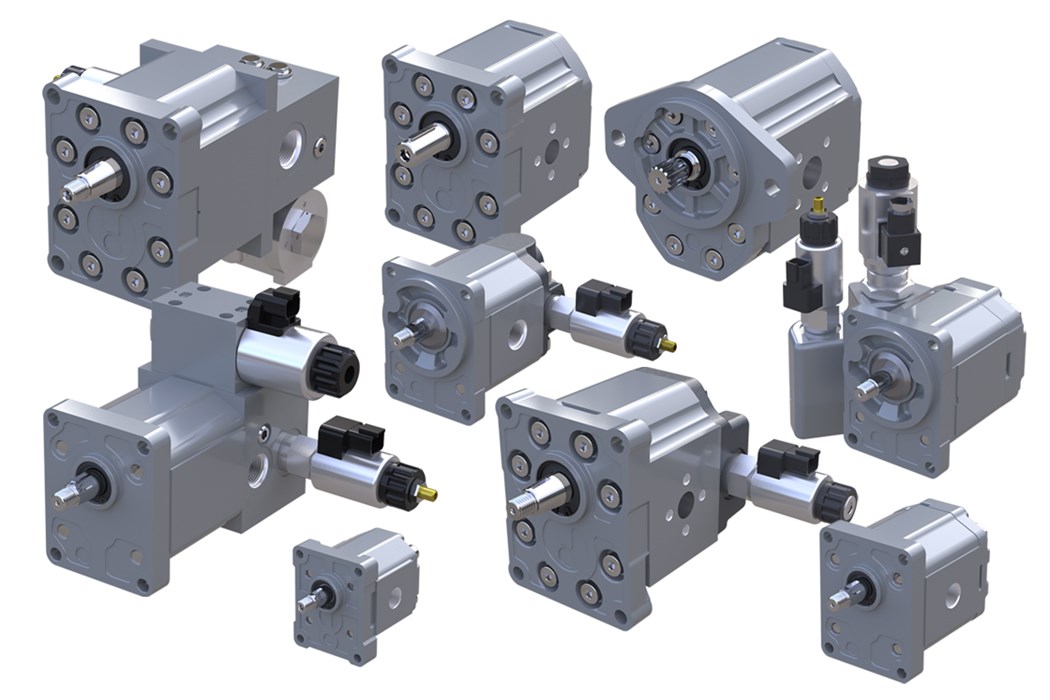

Decrease noise emissions and pressure ripples in hydraulic systems with Danfoss aluminum gear motors. Featuring a pressure balanced, die-cast aluminum design, these compact, bi-directional motors incorporate multiple valve packages creating a complete solution.

Displacement – 7-32 cc (0.4 to 2.0 cu in)
Continuous pressure rating – 240 bar (3,500 psi)

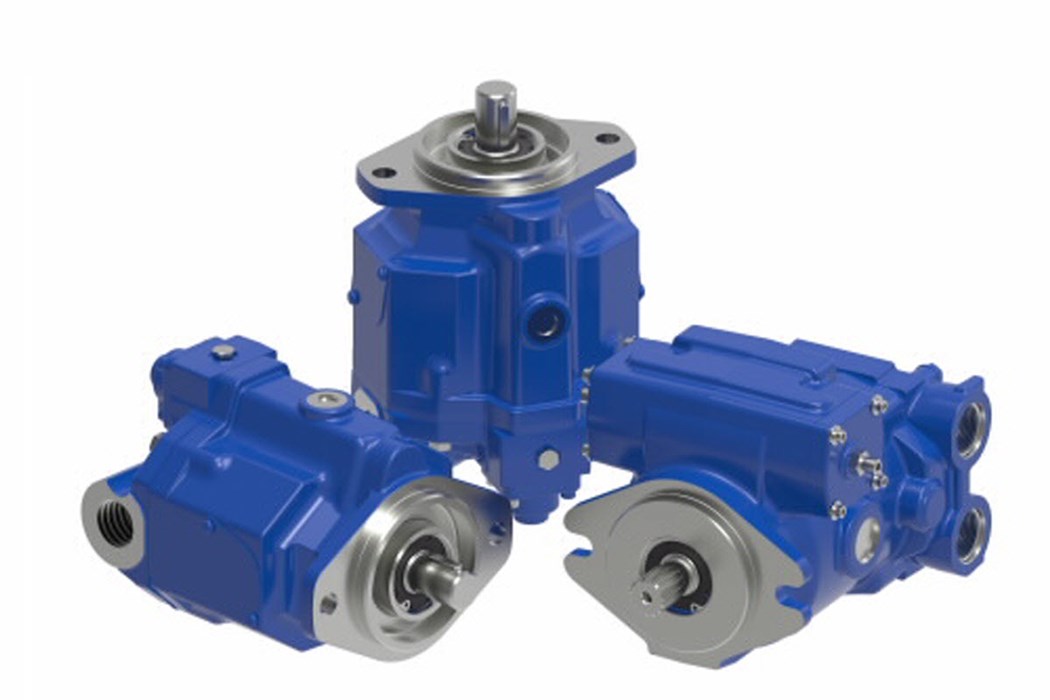

Danfoss medium-pressure fixed piston motors are ideal for many applications including propel, fan drive, and agricultural seeding and planting. These motors have displacements from 10 to 83cc, pressure rating of 350 bar, speed rating up to 6,000 rpm and a through drive option.

• Technology – Axial piston
• Displacement – 12-82 cc (.75 to 5 cu in)
• Continuous pressure rating – 370 bar (5,300 psi)

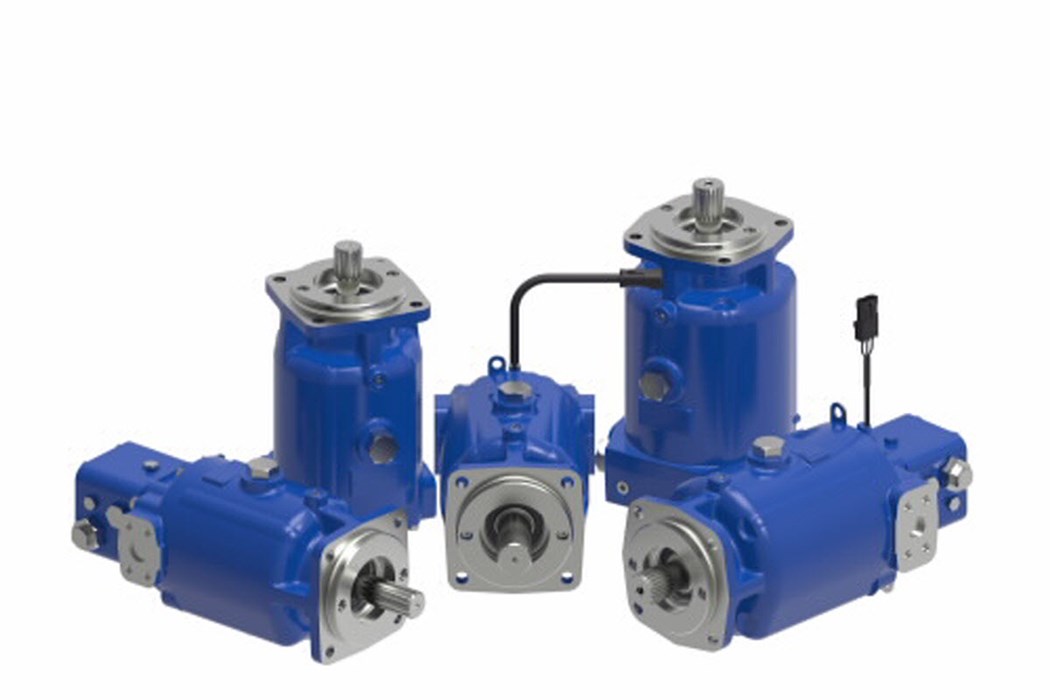

With differentiating high-speed characteristics, the Danfoss Series 1 fixed motor delivers the torque you need for compact, high-pressure piston mobile applications.

• Technology – Axial piston
• Displacement – 55-125 cc (3.3 to 7.6 cu in)
• Continuous pressure rating – 420 bar (6,100 psi)

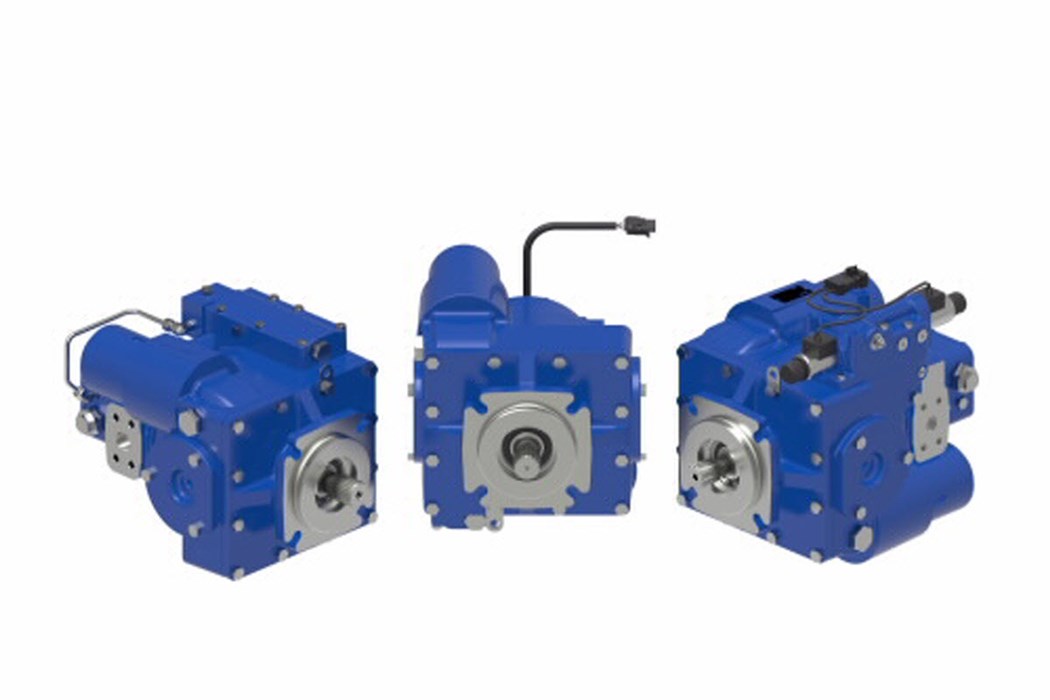

Danfoss Series 1 variable displacement piston motor are known by engineers and operators for exceptional quality, longevity and efficiency. Built for the most demanding applications, this motor is commonly used in transit mixers, combines and winches.

• Technology – Axial piston
• Displacement – 55-125 cc (3.3 to 7.6 cu in)
• Continuous pressure rating – 420 bar (6,100 psi)

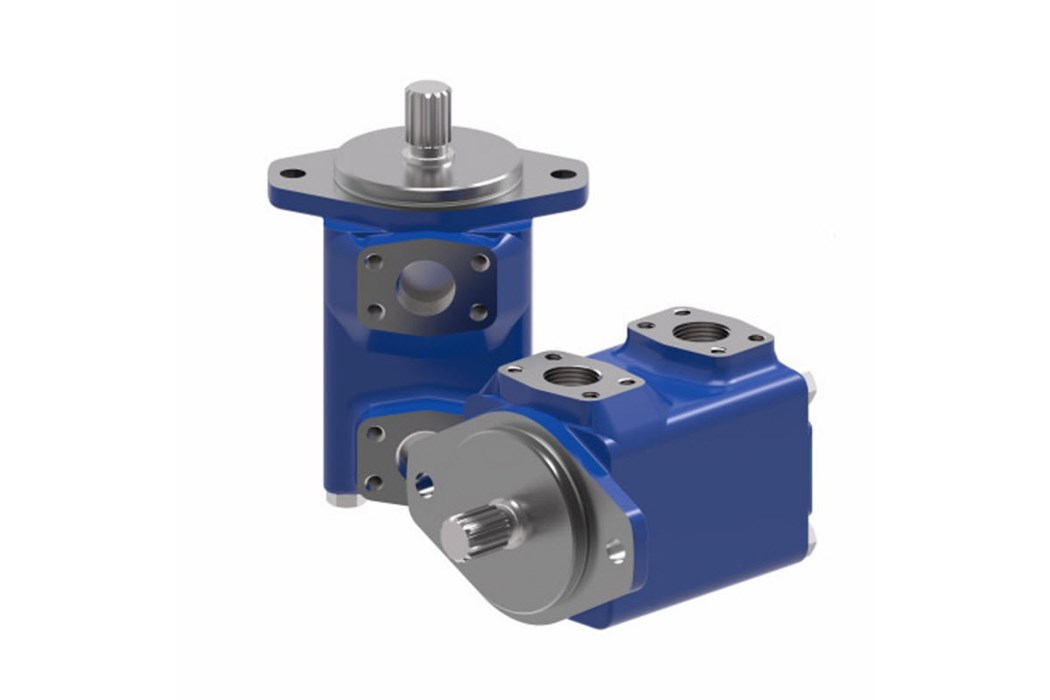

Danfoss M-series vane motors give you an efficient and economical means of applying variable speed and rotary hydraulic power. These powerful, affordable motors offer variable horsepower and constant torque.

• Technology – Vane
• Displacement – 44-317 cc (2.6 to 19.3 cu in)
• Continuous pressure rating – 172 bar (2,500 psi)

Danfoss Hydrokraft axial piston motors are engineered with the largest shaft bearings available, for full through-drive capability and long life in harsh operating conditions. Hydrokraft products offer total application flexibility, with a wide range of control options.

• Technology – Axial piston
• Displacement – 66-750 cc (4.0 to 45.8 cu in)
• Continuous pressure rating – 350 bar (5,000 psi)

Offering you some of the best Orbital motors on the market, based on more than 60 years of experience in the field of hydraulics. Danfoss orbital motors have a very high efficiency over the entire lifetime of the product, meaning that you save energy and money.

Our global reach means we can provide customer service and technical support almost anywhere.
